Piezo Buzzer

Passive Piezo buzzer External Drive type, PCB mounting Piezo buzzer.

A Quality Buzzer Manufacturer in India.

We develop and provide passive piezo buzzers as per custom requirements. Our mission is to provide customers with superior quality piezo buzzer designed and manufactured to meet technical requirements. Best quality, timely delivery with clear communication and prompt response are our strengths. Best available Piezo ceramic elements are used to provide long life. Models available: PCB mounting Piezo buzzers in 12mm, 17mm and 22mm sizes, new models in pipeline kindly send your inquiry.

Number	Size	Resonant Frequency	Sound Pressure level	Rated voltage	Download

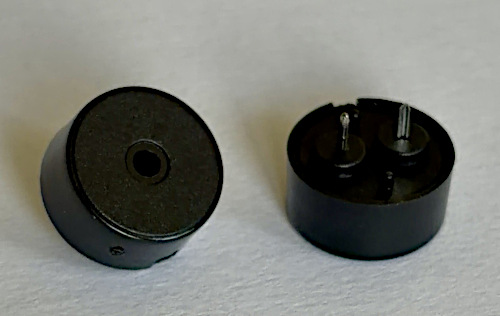

PZ-01-12: 12mm Passive Piezo buzzer, External drive type.	12mm dia. x 7.4mm height	4 KHz	70dB minimum	5.0V p-p	Download Datasheet

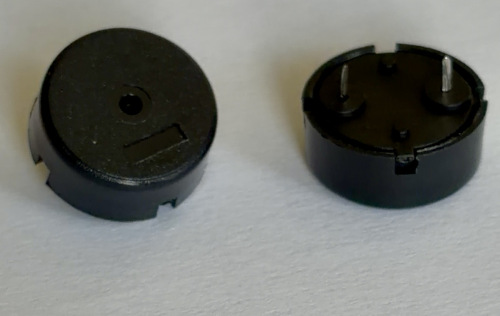

PZ-01-17: 17mm Passive Piezo buzzer, External drive type.	17mm dia. x 8mm height	2 KHz	70dB minimum	5.0V p-p	Download Datasheet

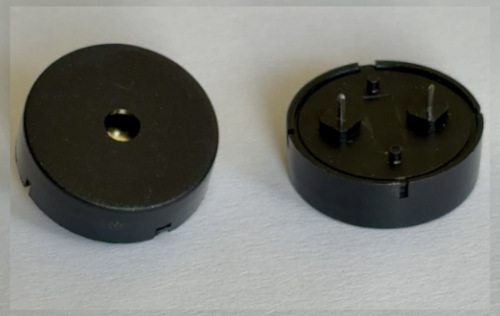

PZ-01-22: 22mm Passive Piezo buzzer, External drive type.	22mm dia. x 7mm height	4 KHz	75dB minimum	5.0V p-p	Download Datasheet
